Laser welding of AHSS & PHS

Laser Welded Blanks

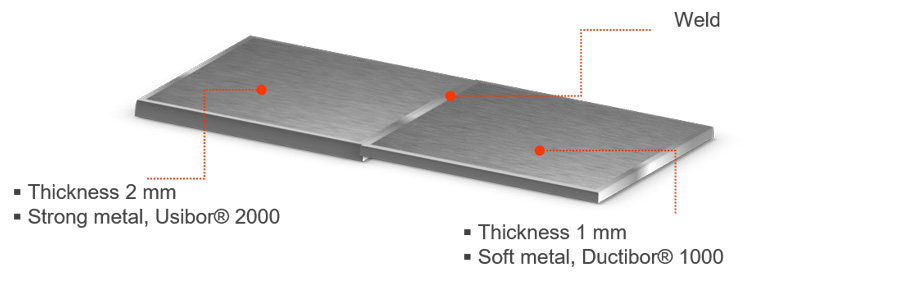

● Laser welded blanks are two or more steel sheets welded together by a laser.
● These sheets can have:
     - Different thicknesses
     - Different alloys
     - Different coatings

● Using laser welded blanks, automotive engineers can design parts with the necessary properties where they are needed, optimizing cost, weight and safety

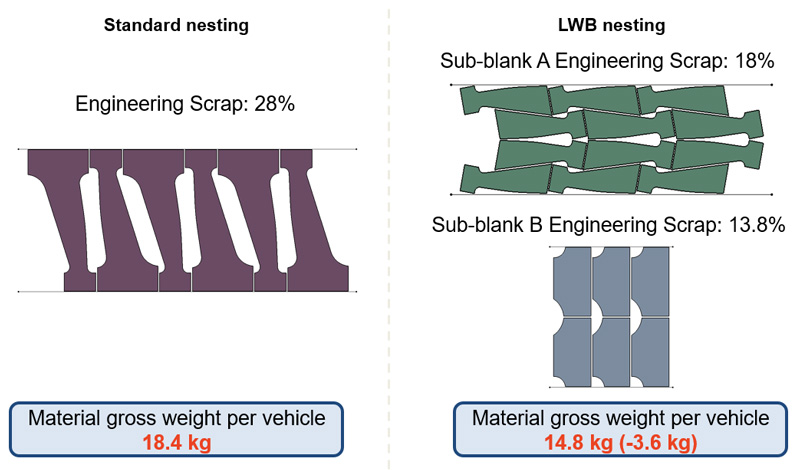

Optimisation of material use with LWB

● LWB allows to engage less raw material therefore reduce cost.

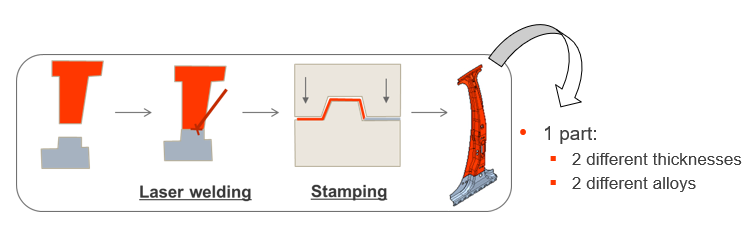

Laser Welded Blanks applications

● Optimum balance between light weight and strength thanks to LWB


Laser welding of Press Hardened Steels



● Usibor® and Ductibor® are delivered with an Aluminum-Silicon (AlSi) coating

     - The coating base composition is about 88 wt% Al + 12 wt% Si.

● The coating function is to:
     - Avoid scale formation and surface decarburization during the thermal treatment process
     - Protect the final part against corrosion.

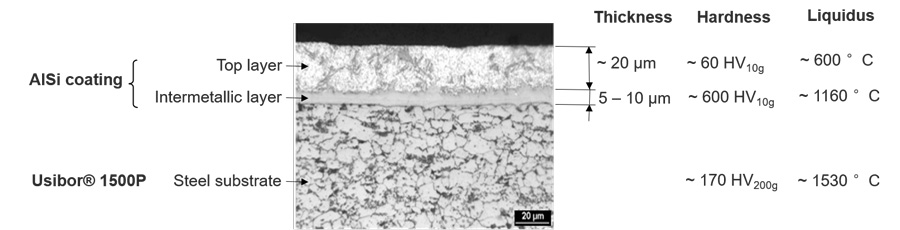

● At delivery state, the AlSi coating is typically composed of 2 layers:
     - A pure Al layer with local Si enrichment, thickness of 15 – 30 µm,
     - A very hard intermetallic layer (Fe2Al5 + FeAl3) at the interface with the steel substrate, thickness of 5 - 10 µm.



Weld pollution with conventional laser welding

● During butt laser welding, the aluminum coating is mixed with the molten steel and pollutes the weld
     - At high Al concentration à formation of brittle intermetallic particles

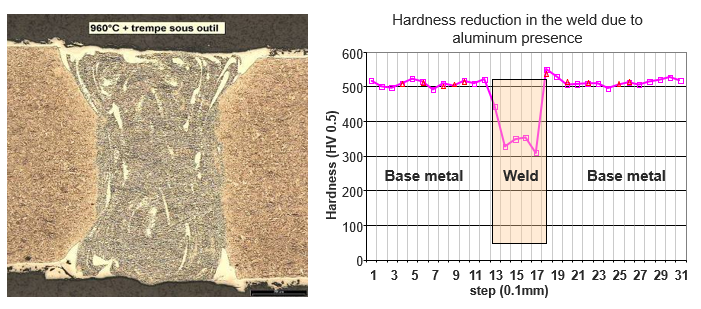

     - At low Al concentration: modification of the microstructure, leading to a soft weld (while the base metal is hardened by the hot stamping process)



Coating removal is indispensable prior to laser welding

● Al pollution decreases significantly the weld properties. And failure occurs along the Al-rich areas
                                                  Failure of weld in a dynamic tensile test
● Example: conventional butt welding of Usibor® 1500 blanks,  iso-thickness 1.75mm/1.75mm,
     - Ultimate tensile strength = 1139MPa
     - Yield strength = 531MPa

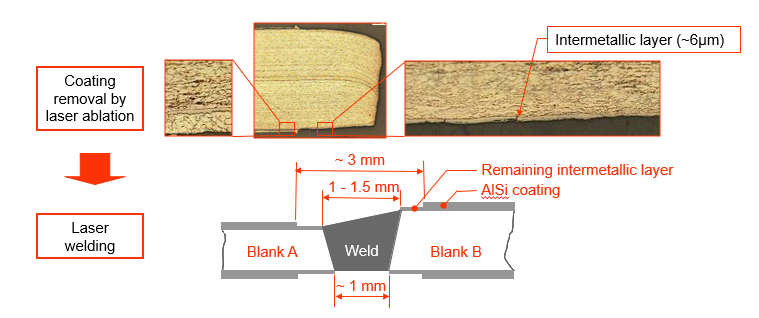

Dedicated AlSi coating removal process

● Before laser welding, the AlSi coating near the edge is partially ablated by laser
     - Top layer removed to avoid excessive Al dilution in the weld
     - Thin intermetallic layer intentionally kept to guarantee corrosion protection

● ArcelorMittal process limits Al-content in weld, guaranteeing weld quality




Simplified process and robust product quality



● All GONVVAMA plant are equipped with state-of-the-art laser ablation lines

● After ablation, the part can be welded by standard laser welding line

● Main benefice for the weld

    - Homogeneous microstructure after heating treatment and quenching

    - Almost same hardness in the weld and in the base metal

    - Fracture occurs in base metal
